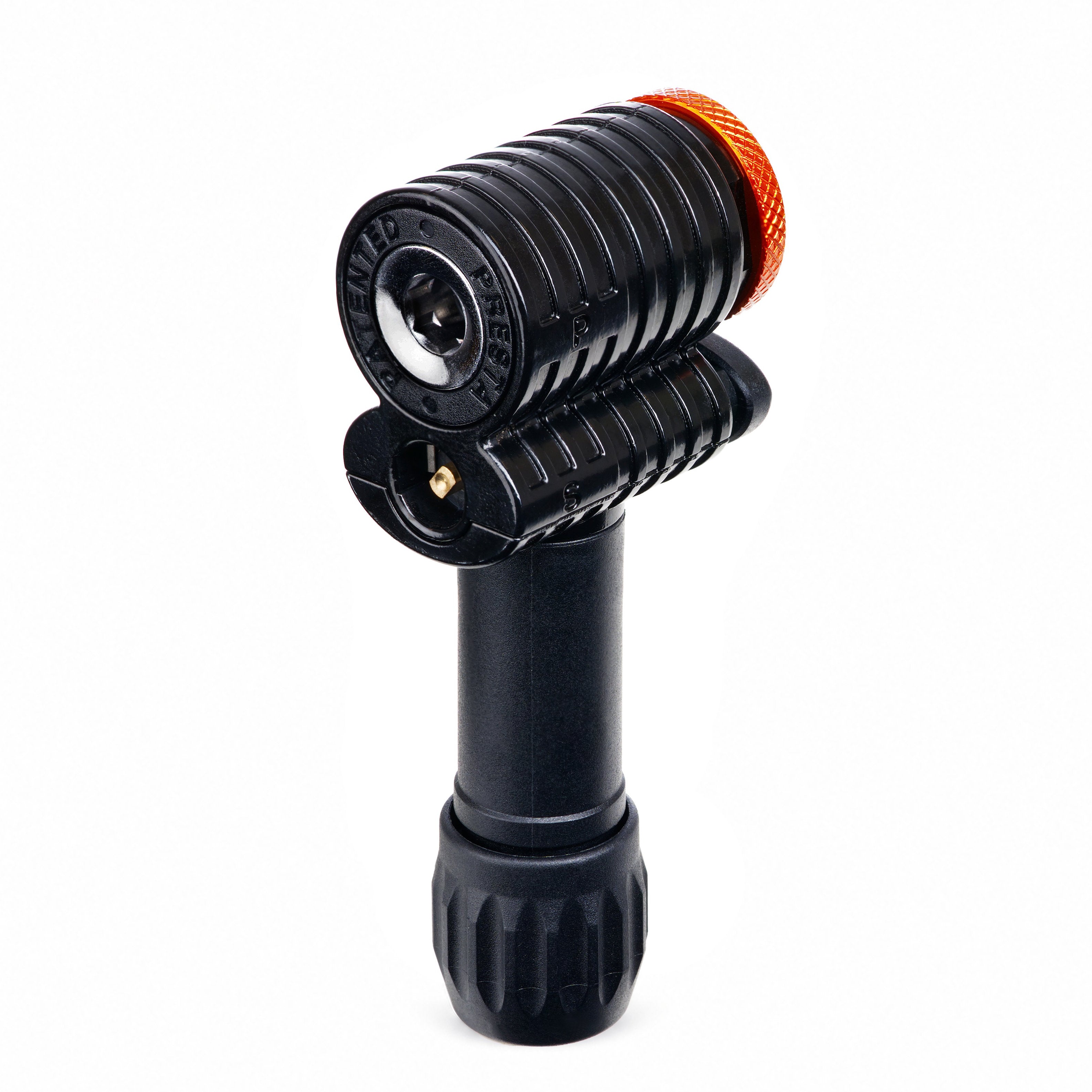

Granite Quickie pump head, Compression Nut version, front view showing the Presta port above and the Schrader port below, on white

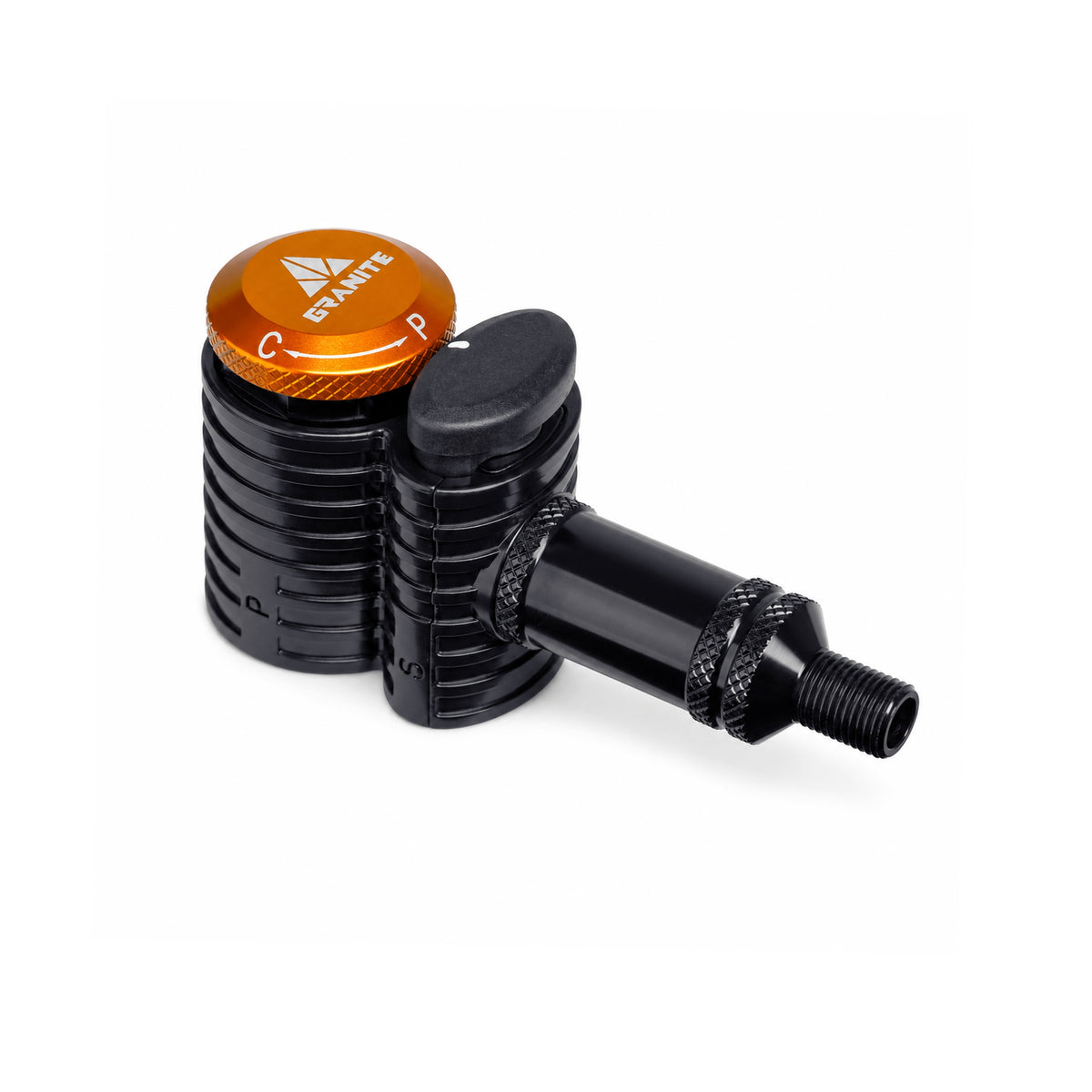

Granite Quickie pump head, Schrader Thread version, top view showing the orange P C collar, black release button and threaded hose connector, on white

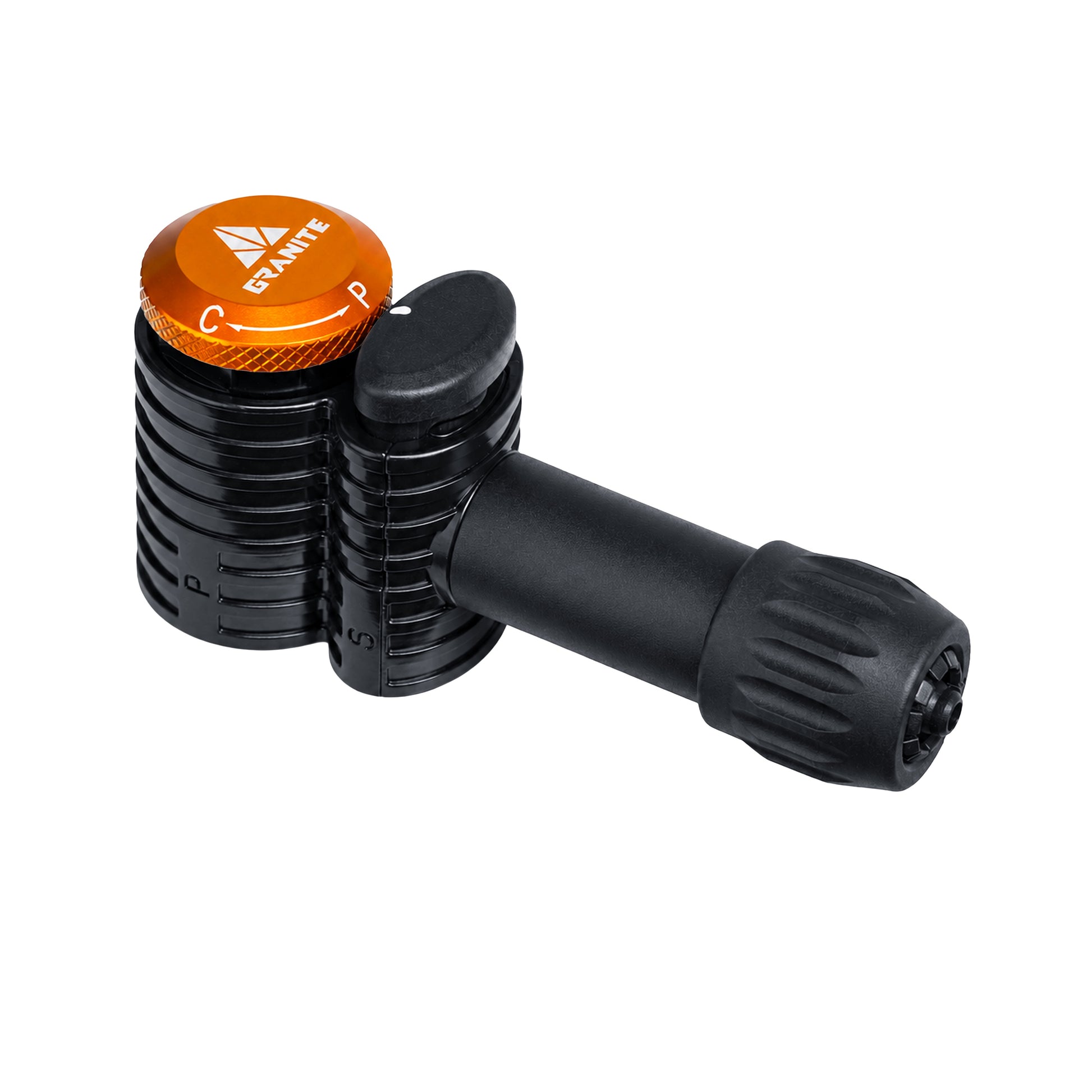

Granite Quickie pump head, Compression Nut version, top view showing the orange P C collar, black release button and hose compression nut, on white

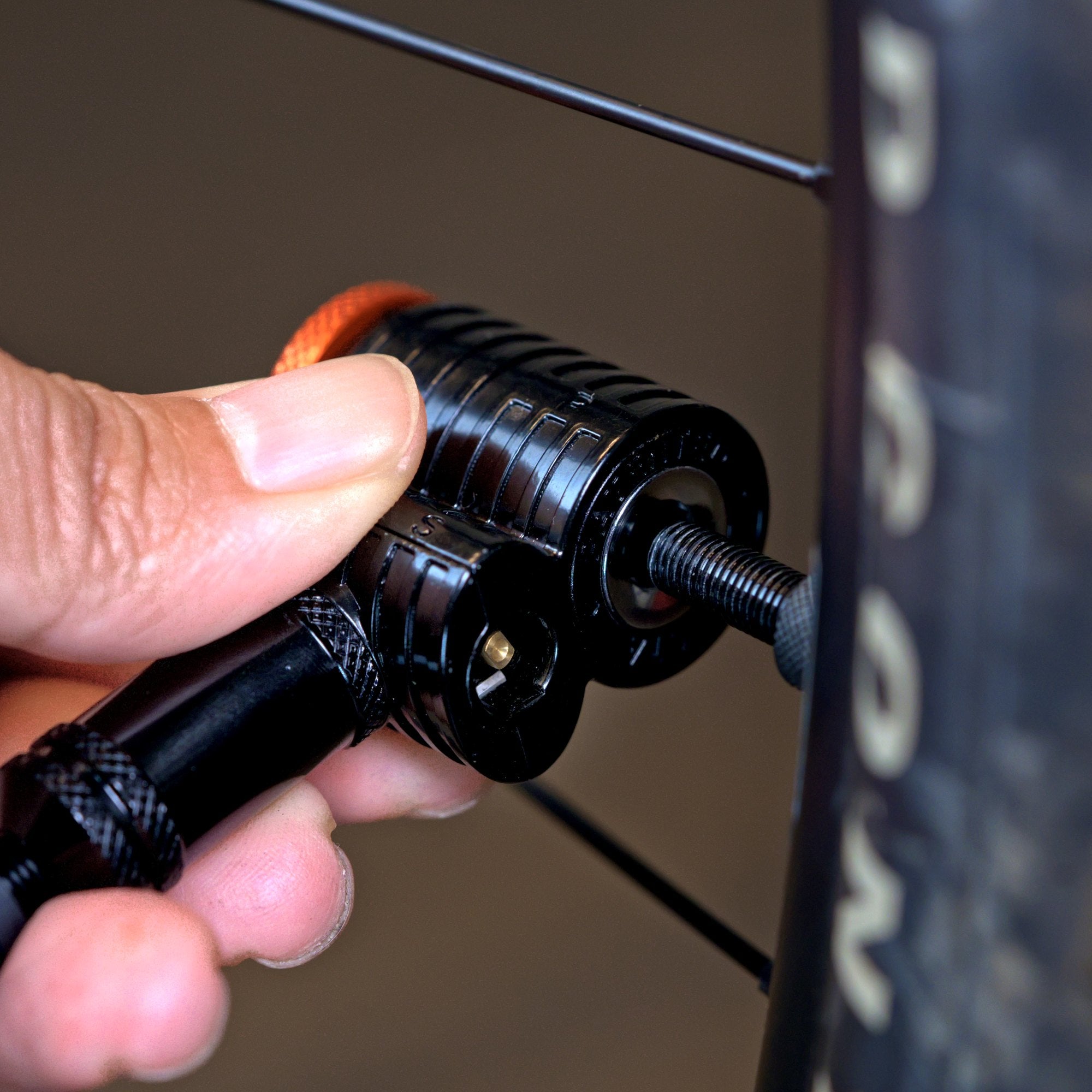

Hand pushing a Granite Quickie pump head straight onto a gravel bike tire valve
Fingers turning the orange P C collar on a Granite Quickie pump head to switch between Presta and Clik

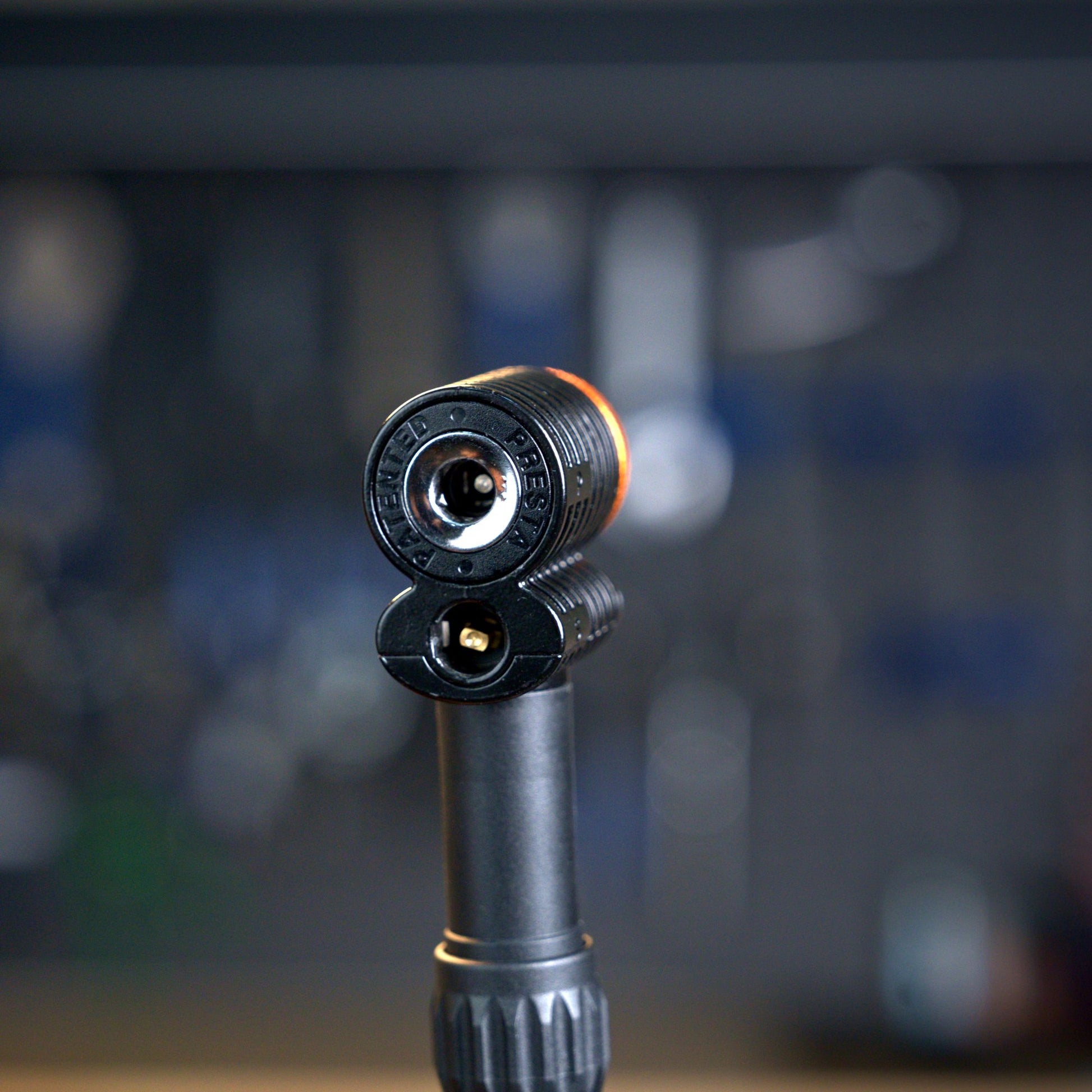

Granite Quickie pump head installed on a floor pump hose in a bike workshop
Granite Quickie pump head, Schrader Thread version, front view showing the Presta port above and the Schrader port below, on white
Granite Quickie pump head, Compression Nut version, front view showing the Presta port above and the Schrader port below, on white
Granite Quickie pump head, Schrader Thread version, top view showing the orange P C collar, black release button and threaded hose connector, on white
Granite Quickie pump head, Compression Nut version, top view showing the orange P C collar, black release button and hose compression nut, on white
Hand pushing a Granite Quickie pump head straight onto a gravel bike tire valve
Fingers turning the orange P C collar on a Granite Quickie pump head to switch between Presta and Clik
Granite Quickie pump head installed on a floor pump hose in a bike workshop

Granite Quickie Pump Head

Regular price $39.99
Sale price $39.99 Regular price
Unit price
  DOWNLOAD MANUAL

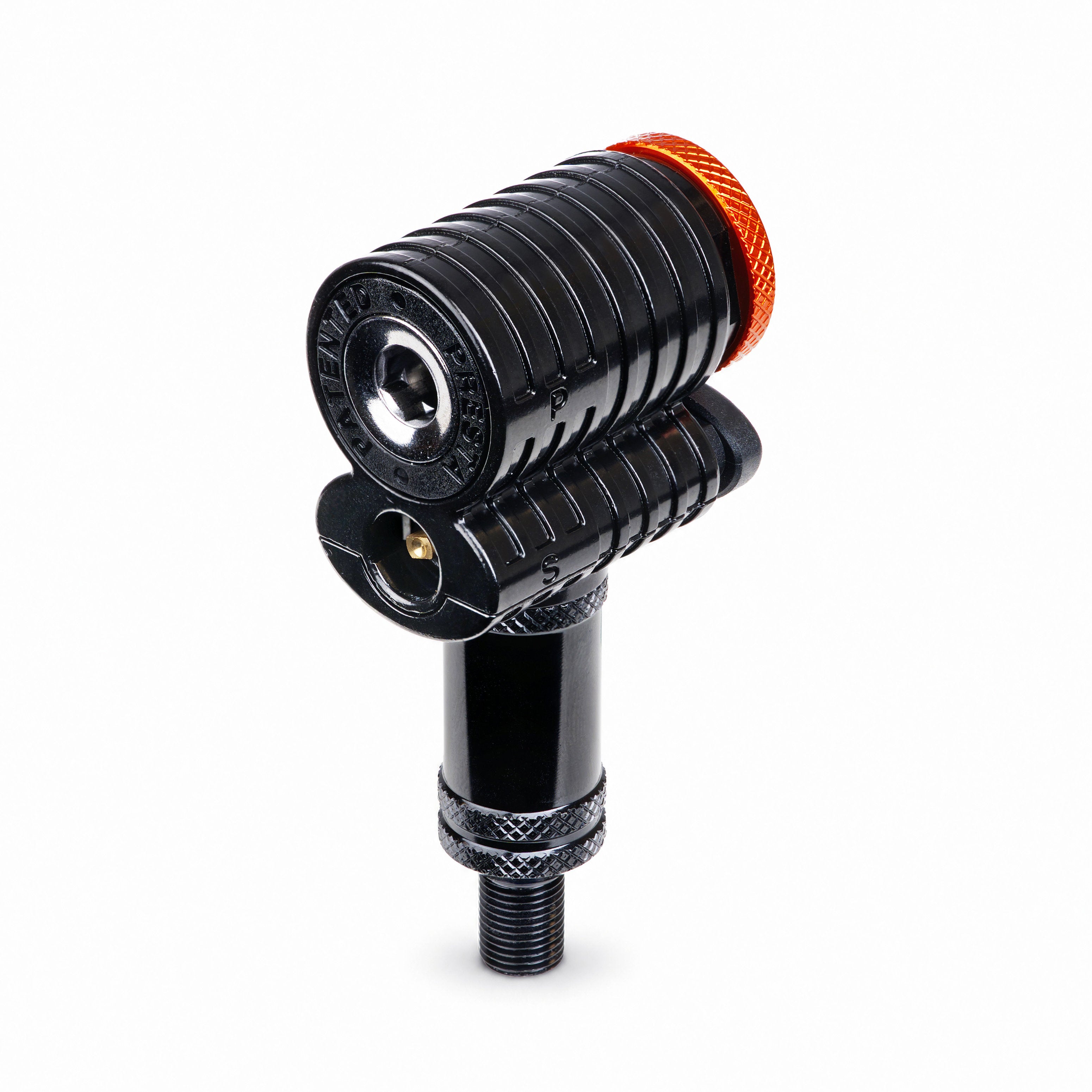

Granite Quickie pump head, Schrader Thread version, front view showing the Presta port above and the Schrader port below, on white

Granite Quickie Pump Head

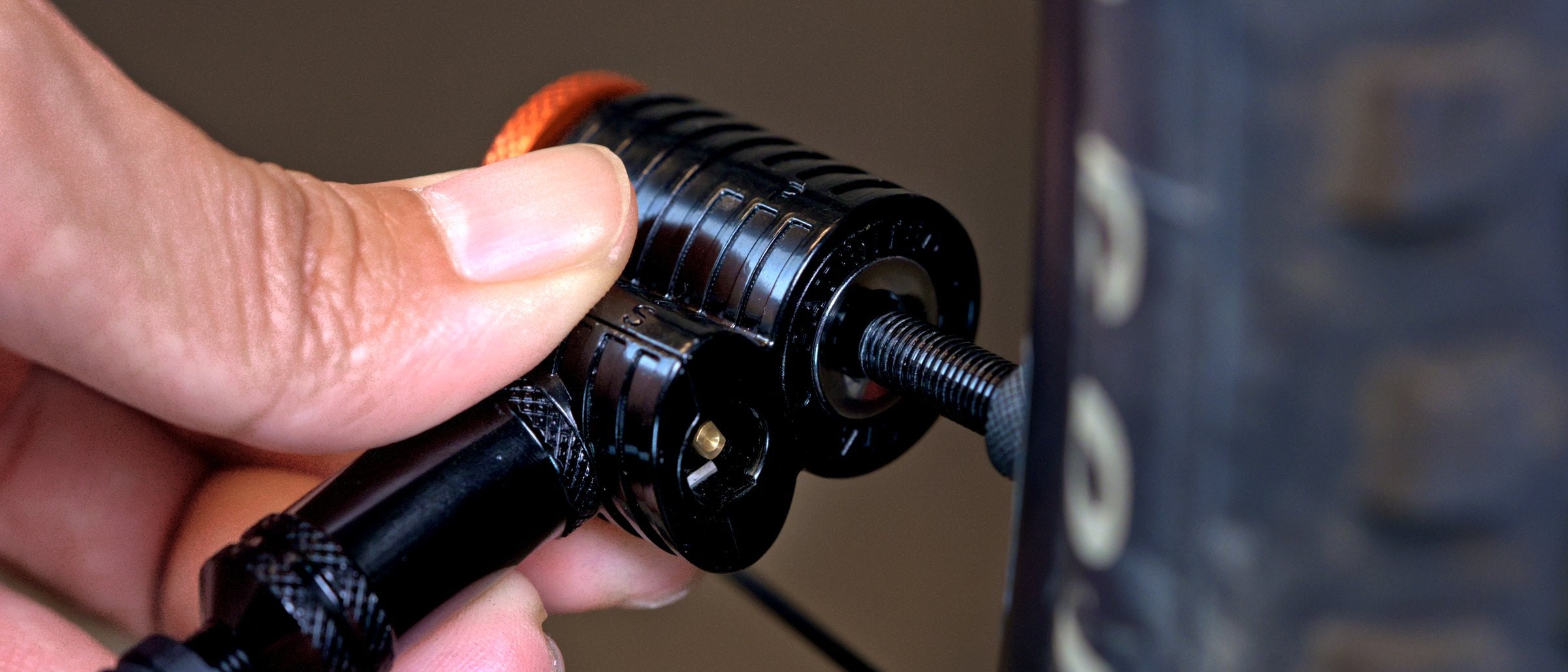

Hand pushing a black Granite Quickie pump head with orange cap straight onto the valve of a gravel bike tire

Push in. Pop out.

Push it straight onto the valve and it holds while you pump. Thumb the release and it pops off. No lever, no threading, one hand — gloves on.

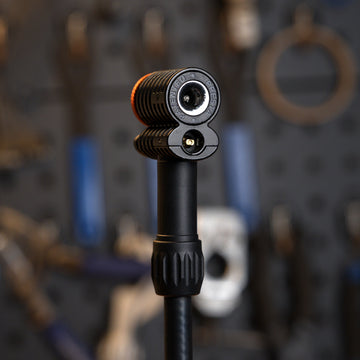

Granite Quickie pump head on a floor pump hose, Presta and Schrader ports facing the camera, workshop tool wall behind

Description

Push In, Pop Out, Fill Up, No Lingering.

Push it straight onto the valve and it holds while you pump. Thumb the release and it pops off. No lever, no threading, no bending a Presta stem sideways — one hand, gloves on, in the cold.

One port takes Presta and Clik, the other takes Schrader, and it fits floor pumps, shop compressors and cordless inflators. Die-cast alloy body, dual sealing system, rated to 150 PSI — not a consumable.

Two versions — check your hose first

The head is identical. The difference is how it attaches to your hose. Look at the end of the hose you already own and pick the one that matches.

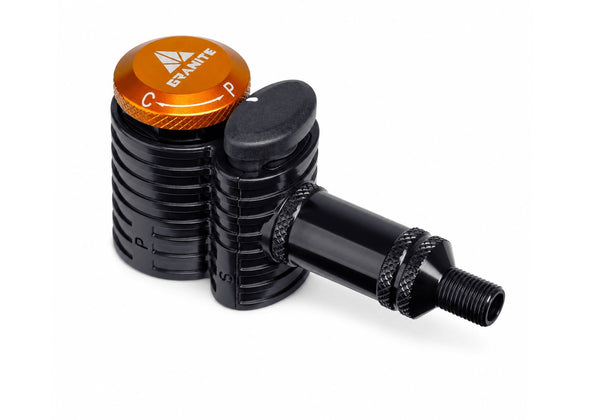

Schrader Thread

Schrader Thread

Your hose ends in a Schrader head — or a screw thread. Screws straight on: ten seconds, no tools, nothing cut. Most cordless and electric inflators end this way. Removable — move it between pumps.

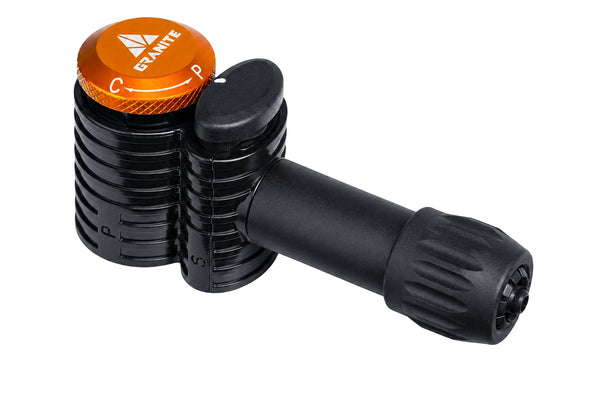

Compression Nut

Compression Nut

Your hose has no head on it — bare rubber hose. Trim the hose to length; the nut and ferrule seal onto it, like a plumbing compression fitting. Fits 8–11 mm (5/16–7/16 in) outer-diameter rubber hose, nut and ferrule included. Permanent — and it fits pumps nothing else fits.

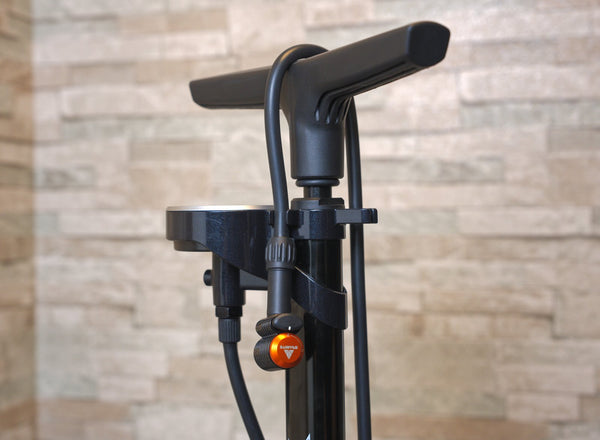

Fits the pump you already own

Fits the pump you already own

Floor pump, cordless inflator or shop compressor — the Quickie replaces the head on the end of the hose, not the pump.

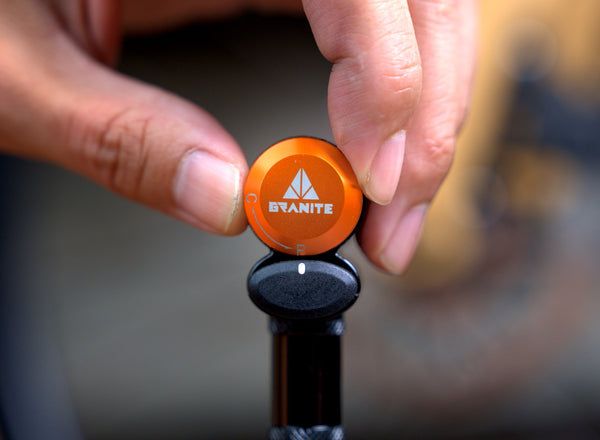

One head, three valves

One head, three valves

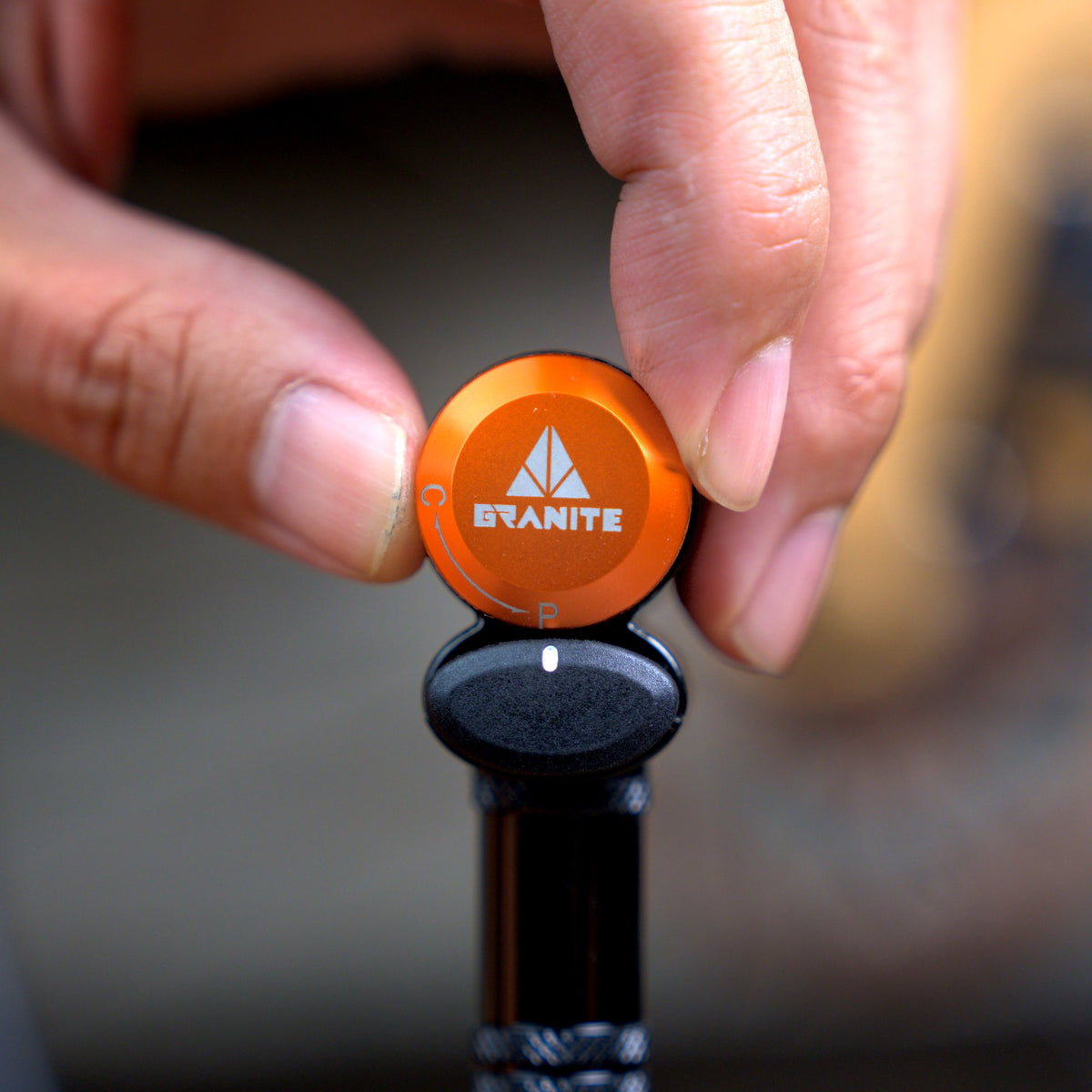

One port takes Presta and Clik, the other takes Schrader. Turn the orange collar from P to C for Clik and the gauge reads real pressure.

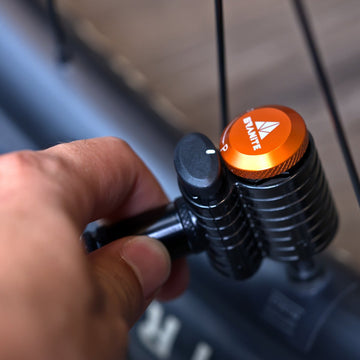

Thumb pressing the black release button on a Granite Quickie pump head locked onto a mountain bike valve

  Feature

  • LEVERLESS PUSH-TO-LOCK Push onto the valve to lock automatically, and press the quick-release button for an instant, effortless pop-off.
  • TRIPLE-VALVE COMPATIBILITY One head fits Presta, Schrader, and Clik Valve systems seamlessly without swapping any internal parts.
  • DUAL-SPEC CONVERSION Available in two specs. Install it as a permanent floor pump hose conversion, or screw it onto an existing Schrader head.
  • ACCURATE CLIK VALVE READINGS Ensures full mechanical compatibility with Clik Valve systems for precise, real-time gauge pressure.
  • PREMIUM METAL BUILD Built to last with a heavy-duty, full-metal construction that offers a sleek and rugged finish.

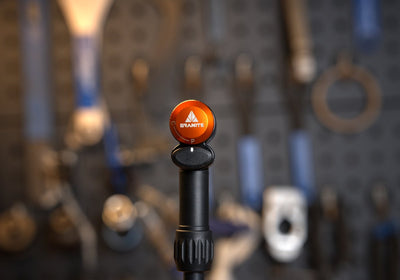

Floor pumps

Floor pumps

Screw onto a Schrader-headed hose, or convert a bare hose with the Compression Nut version.

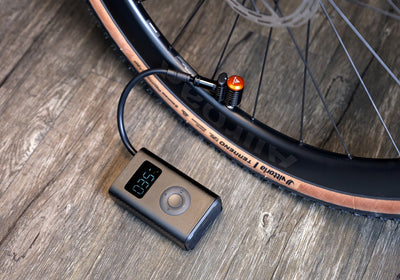

Cordless inflators

Cordless inflators

Most end in a Schrader head, so the Schrader Thread version screws straight on. Check the end of your hose.

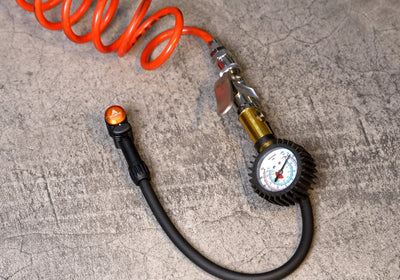

Shop compressors

Shop compressors

Rated to 150 PSI / 10.3 bar. Replaces the air chuck on a compressor hose.

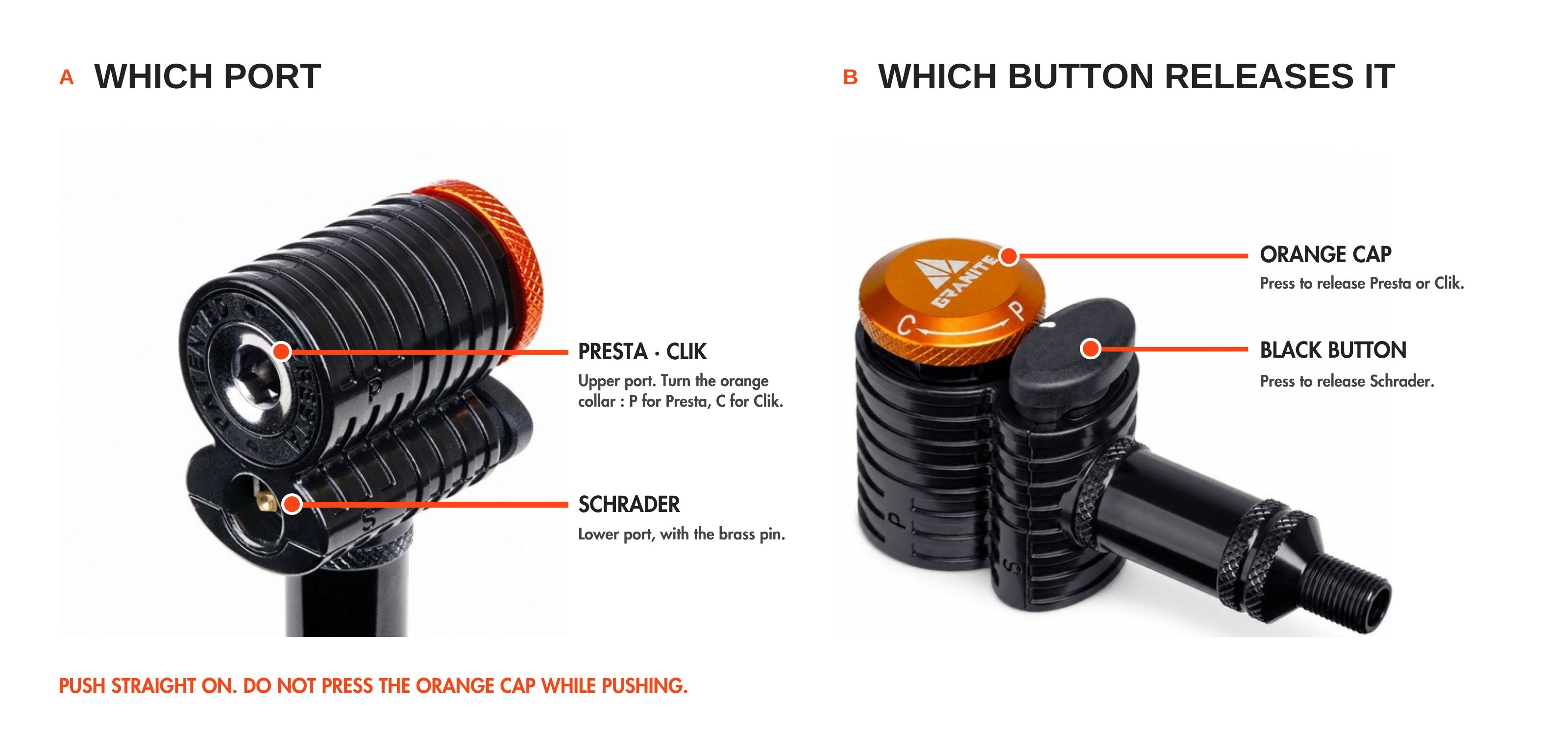

Diagram of the Granite Quickie pump head: upper port for Presta and Clik, lower port for Schrader; orange cap releases Presta and Clik, black button releases Schrader. Do not press the orange cap while pushing on.

Specs

  • Type 3-in-1 quick connect air chuck / pump head
  • Valve compatibility Presta, Schrader, Clik-compatible
  • Body Die-cast alloy, dual sealing system, 90° hose exit
  • Max pressure 150 PSI / 10.3 bar
  • Versions Schrader Thread (GQK26S) · Compression Nut (GQK26H, fits 8–11 mm OD rubber hose, nut and ferrule included)
