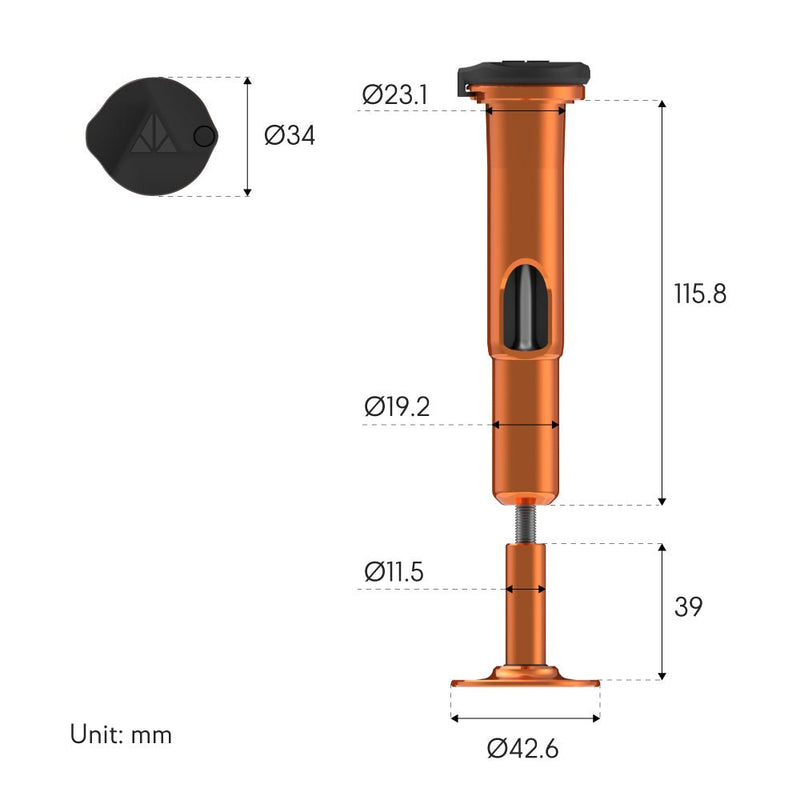

Granite Stash RT Ratchet Tool Kit orange alloy steerer tube storage with black cap, shown with detailed millimeter dimensions
Granite Stash RT Ratchet Tool Kit tightening a bike seatpost bolt on an orange frame, compact silver bicycle repair tool
Granite Stash RT Ratchet Tool Kit, compact orange anodized bike handlebar tool with bits stored inside cylindrical body
Granite Stash RT Ratchet Tool Kit, sleek black in-frame bike tool with hidden bits and pop-up base for compact bicycle repairs
Granite Stash RT Ratchet Tool Kit in orange mounted on a bike's handlebar stem, displaying tool bits in a compact setup.
Granite Stash RT Ratchet Tool Kit stored inside bike steerer tube, silver fork with orange internal ratchet and bits visible
Person using the extended PH1 bit from Stash RT multitool as a leverage handle on a bike's bottle cage mount.
Granite Stash RT Ratchet Tool Kit orange alloy steerer tube storage with black cap, shown with detailed millimeter dimensions
Granite Stash RT Ratchet Tool Kit tightening a bike seatpost bolt on an orange frame, compact silver bicycle repair tool
Granite Stash RT Ratchet Tool Kit, compact orange anodized bike handlebar tool with bits stored inside cylindrical body

Granite Stash RT Ratchet Tool Kit

Regular price $69.99
Sale price $69.99 Regular price
Unit price
Black
Orange
  DOWNLOAD MANUAL
Granite Stash RT Ratchet Tool Kit, sleek black in-frame bike tool with hidden bits and pop-up base for compact bicycle repairs

Granite Stash RT Ratchet Tool Kit

A mountain bike steerer tube, featuring a Granite Stash RT multi-tool mounted at the top. The background shows a scenic mountain view with trees, indicating an outdoor setting.

The tool kit that lives in your fork.

A two-way mini ratchet and 9 bits, stored inside your steerer tube. Nothing to pack, nothing to forget. Fits 1-1/8" to 1.5" tapered forks. 159 g.

Three bike tools on a rocky surface: an orange Stash RT multi-tool, a silver ratchet, and a black multi-bit tool kit.

Description

The Stash RT is a ratchet tool kit that lives inside your fork steerer. Push and turn the top cap and the ratchet pops out on a spring. Nothing to pack, nothing to leave on the bench.

A two-way mini ratchet rated to 20 Nm, with nine bits from 2 to 8 mm hex, T25 and a long PH1. It spins bolts where a folding multi-tool can't swing. 159 g installed.

Fits 1-1/8" to 1.5" tapered steerers with a 170 to 250 mm stack, no star nut needed. Not for Fox 38 Performance or eMTB forks. Straight steerer? See the Stash RCX.

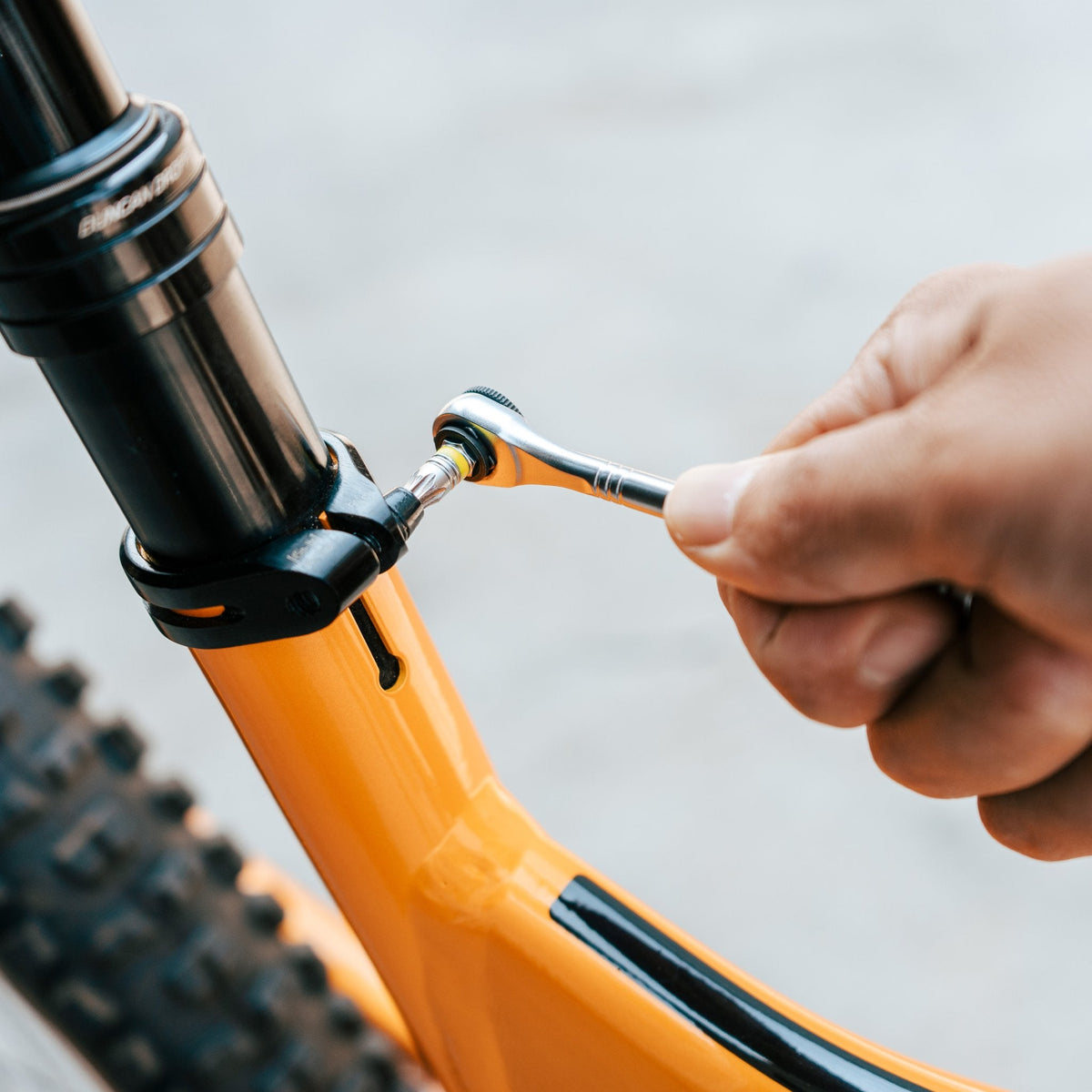

A real ratchet, not a folding key

A real ratchet, not a folding key

Reversible head, rated to 20 Nm. Spin bolts quickly on a dropper collar or a stem where a multi-tool can't turn.

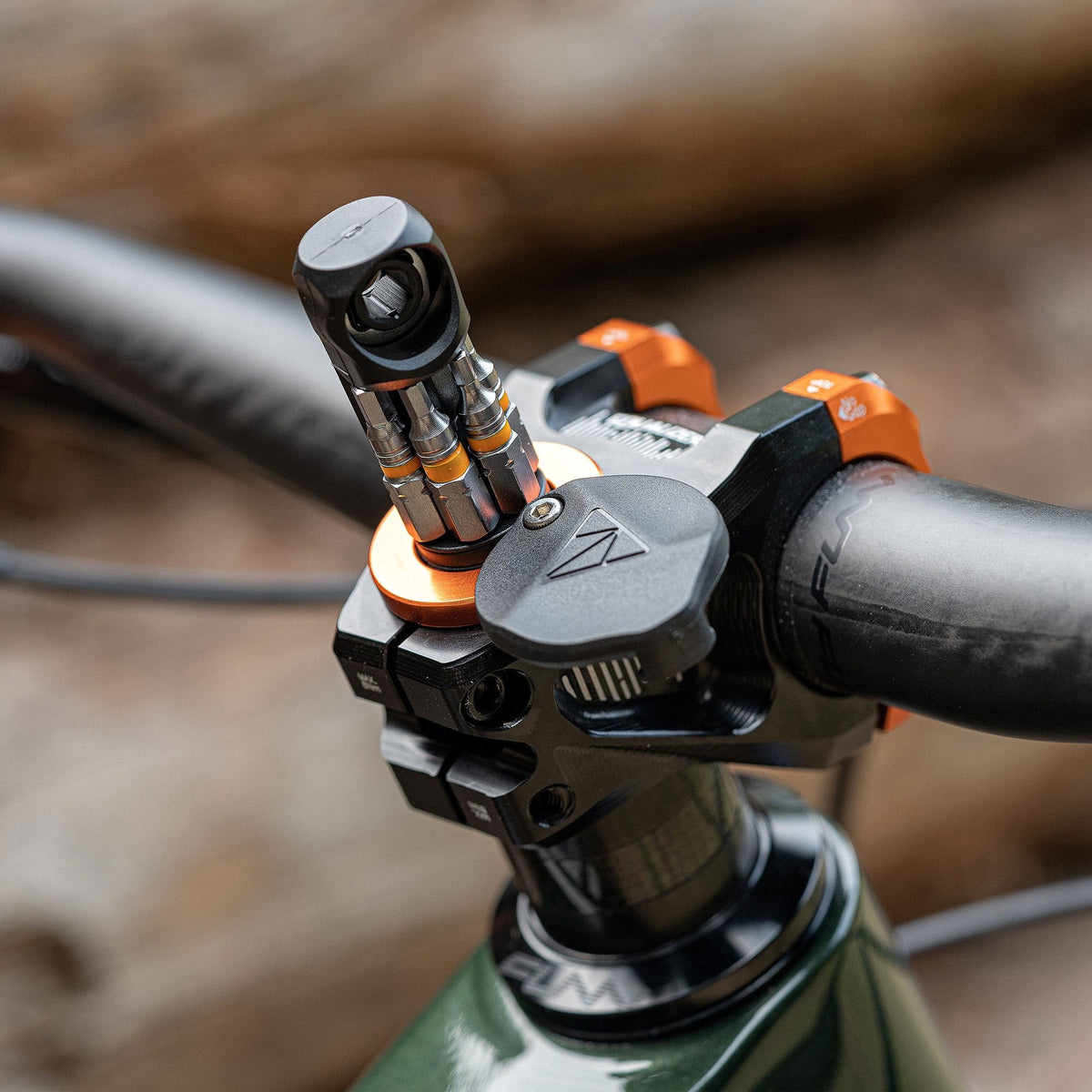

Disappears into your fork

Disappears into your fork

The whole kit rides inside the steerer tube. Push and turn the top cap and it lifts out, bits loaded.

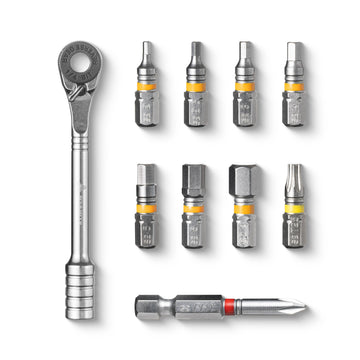

Granite Stash RT contents laid out on white: two-way mini ratchet, eight 1/4-inch hex and T25 bits with orange bands, and a long PH1 bit

  Feature

  • Two-way mini ratchet Takes 1/4" bits, 92 mm long, rated to 20 Nm. Faster than a folding key in tight spots, and it reaches bolts a big multi-tool can't.
  • Nine bits 2, 2.5, 3, 4, 5, 6 and 8 mm hex, T25, and an extended PH1 that clips on as a leverage handle.
  • Lives in your steerer The housing and bits sit inside the fork tube on a spring-loaded holder. Push and turn the top cap to pop the ratchet out.
  • Installs without tapping Replaces the star nut. Three M6 bolts (50, 80 and 110 mm) are included to match your steerer stack; a 5 mm and 6 mm hex key set the headset preload.
  • Built for the trail AL6061 tool housing, CR-V steel ratchet, S2 steel bits. 159 g installed, and it never rattles loose in a pack because there is no pack.
  • Add a computer or an AirTag The top cap takes a Scope computer mount for Garmin, Bryton and Wahoo; the lower cap takes a Stash AirTag mount. Both sold separately.

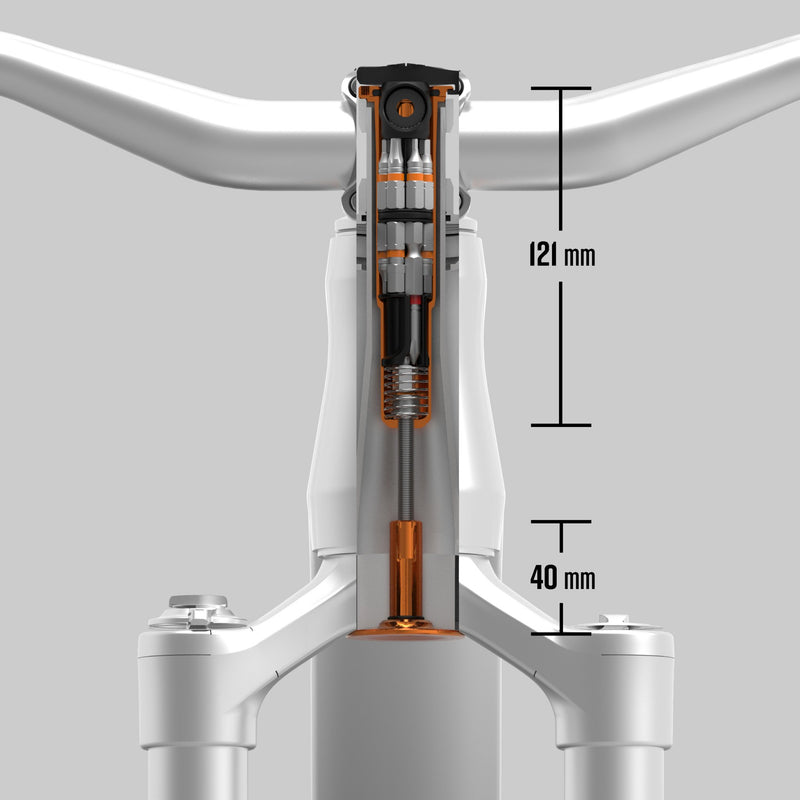

Tapered steerers, 1-1/8

Tapered steerers, 1-1/8" to 1.5"

Fits inner-tapered forks like the RockShox Pike and Lyrik or Fox 36 and 38. The housing needs about 121 mm of clear steerer inside.

Measure your steerer stack

Measure your steerer stack

170 to 250 mm from the top of the stem to the bottom of the fork crown. Three bolt lengths (50, 80 and 110 mm) are in the box to match.

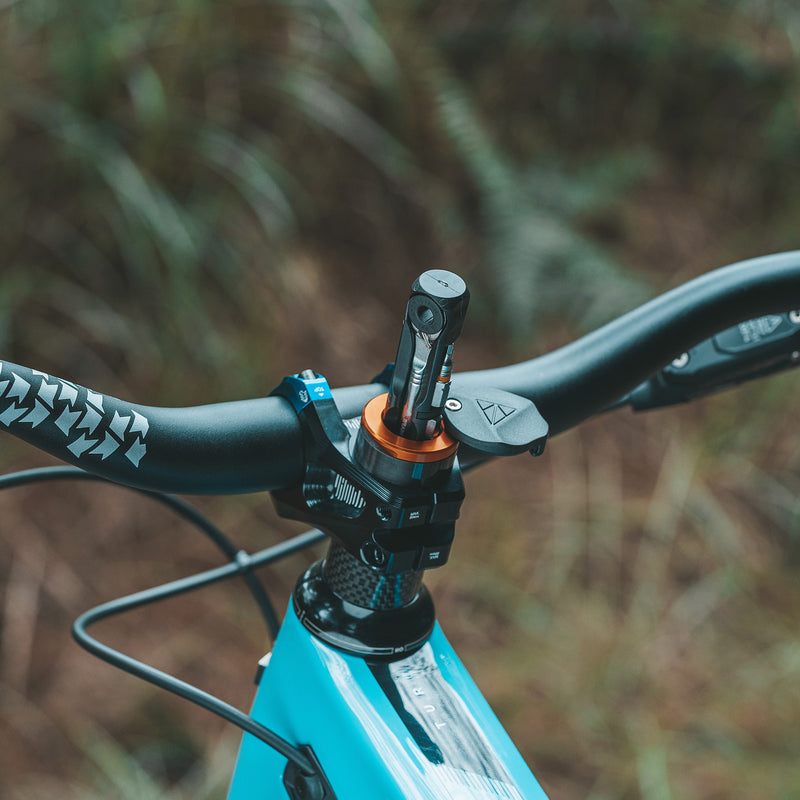

Doesn't fit your fork?

Doesn't fit your fork?

Not for Fox 38 Performance or eMTB forks. For a road or closed straight steerer, the Stash RCX uses an expander and fits 23.5-27 mm round steerers instead.

Specs

  • TypeIn-steerer ratchet tool kit
  • RatchetTwo-way, 1/4" bits, 92 mm, 20 Nm max
  • Bits9: 2, 2.5, 3, 4, 5, 6, 8 mm hex, T25, extended PH1
  • MaterialAL6061 housing, CR-V steel ratchet, S2 steel bits
  • Weight159 g installed
  • Steerer type1-1/8" to 1.5" tapered, incl. inner-tapered
  • Steerer stack170-250 mm, top of stem to fork crown
  • Bolts includedM6 x 50, 80 and 110 mm
  • Not compatibleFox 38 Performance, eMTB, road/closed straight steerers
  • ColoursBlack, Orange

Install

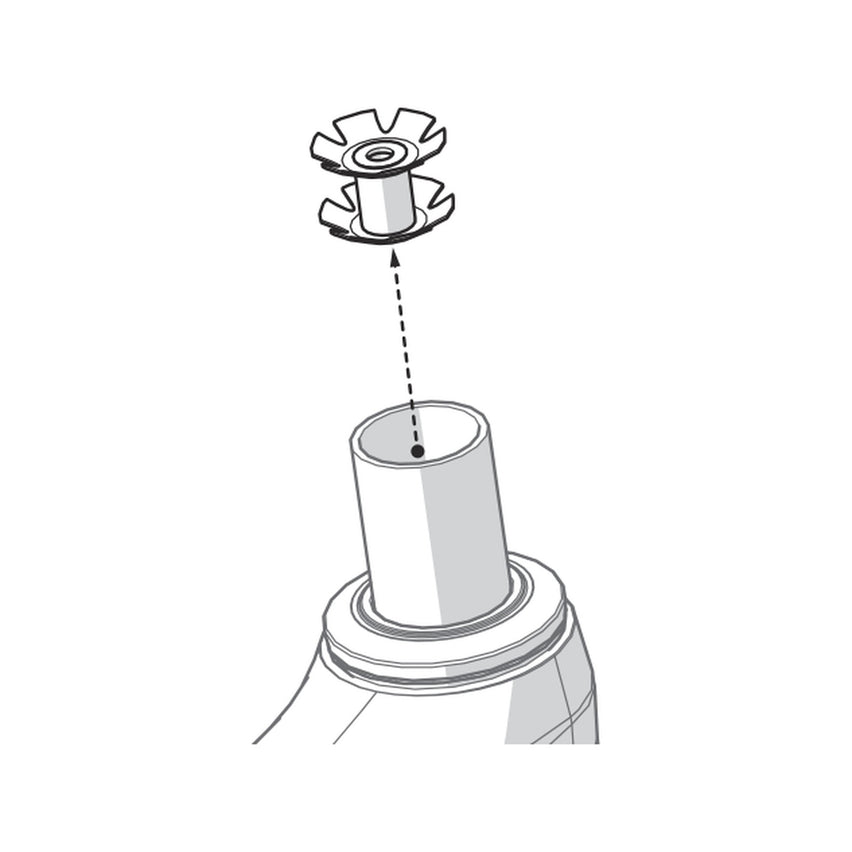

1. Remove the star nut

1. Remove the star nut

Take off the top cap and stem to reach the star nut inside the steerer. Remove it and clean the tube. No tapping.

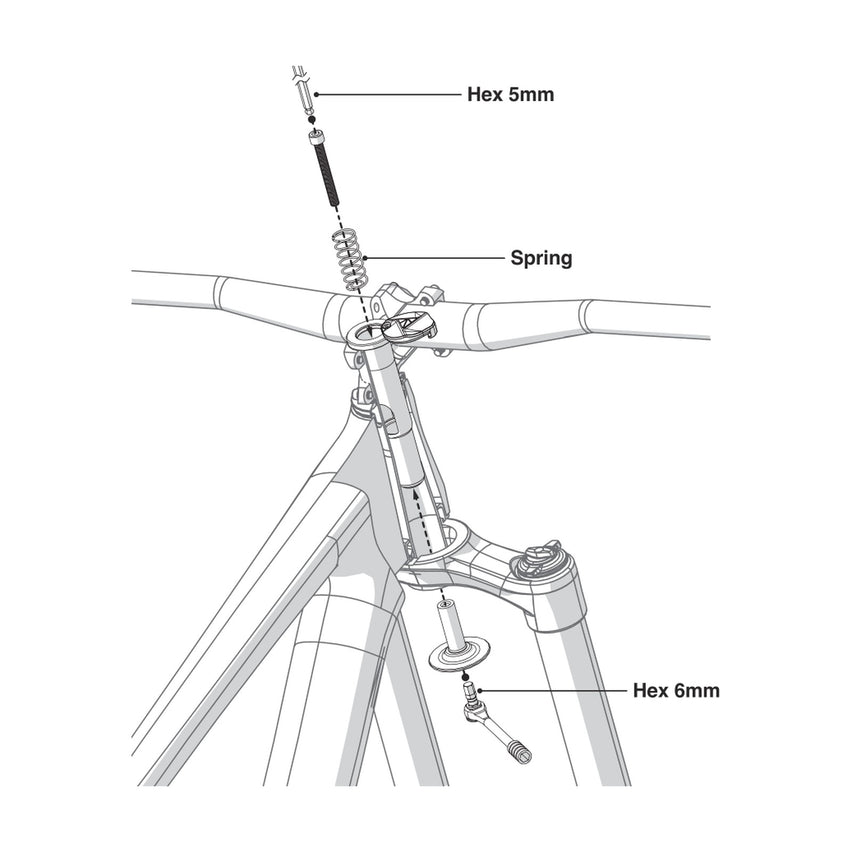

2. Fit the housing, set preload

2. Fit the housing, set preload

Refit the stem with the steerer sitting about 3 mm low. Drop in the tool housing, run the matching M6 bolt down to the lower assembly and tighten to 2-3 Nm, then align and tighten the stem bolts.

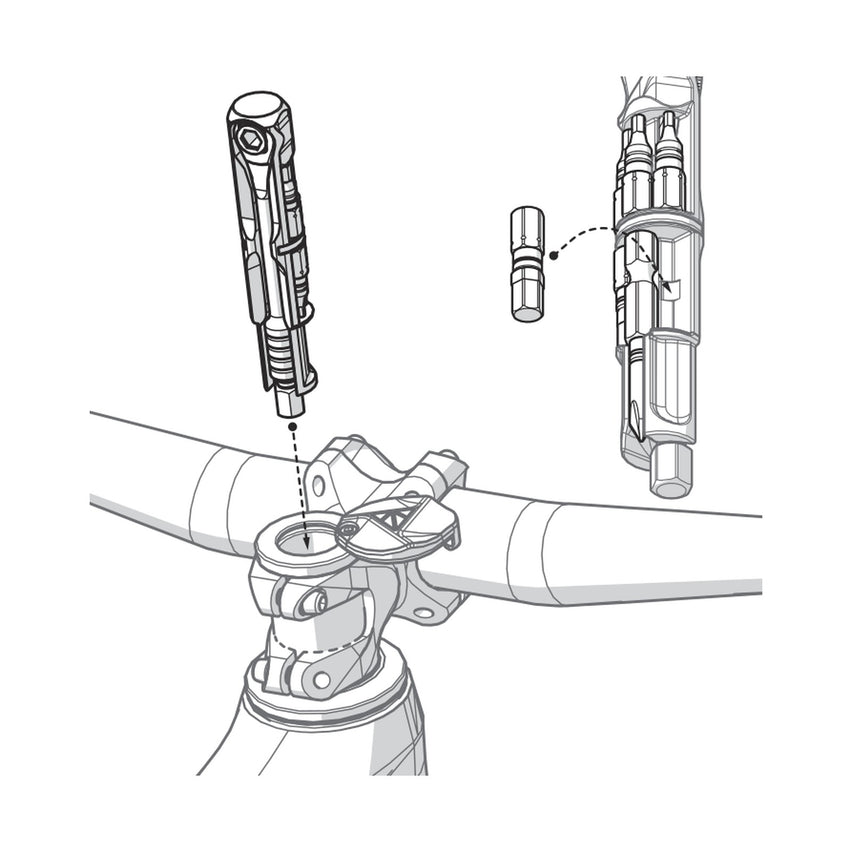

3. Load the bits and ride

3. Load the bits and ride

Load the bits with the big end to the magnet and the M6 bit at the bottom, drop the ratchet in and close the top cap. Push and turn to pop it out on the trail.
